About this item
Awesome Brightness: Each tail light has 10PCS high-quality 3030 LED chips to output super bright red light. The aluminum substrate circuit board adds more electronic components, making the circuit more stable and durable
Ready For The Weather: The oval taillight adopts ultrasonic technology to tightly embed the lens and lamp body together, achieving a high sealing IP67 waterproof level. Always be ready for different kinds of weather attack
Simple Installation: Firstly, install the rubber grommet on both sides. Secondly, press the two oval lights into the grommet. Thirdly, Plug in the plugs of the two lights, and then fix the hardness under the cargo carrier with cable ties. Finally, insert the 4pin male connector into the 4pin female connector on the vehicle
Upgraded Unique Design: Nilight's tail light has unique “ears” on its two sides, upgrade notches on the inside of grommet, make the grommet and light tightly connected and prevent them from falling off. Equipped with an 82.68” wire harness, one end of the harness is equipped with two 3-prong plugs that can securely connect the oval lights. Also set a 4-way flat plug on the other end to perfectly connect to the connector on the vehicle

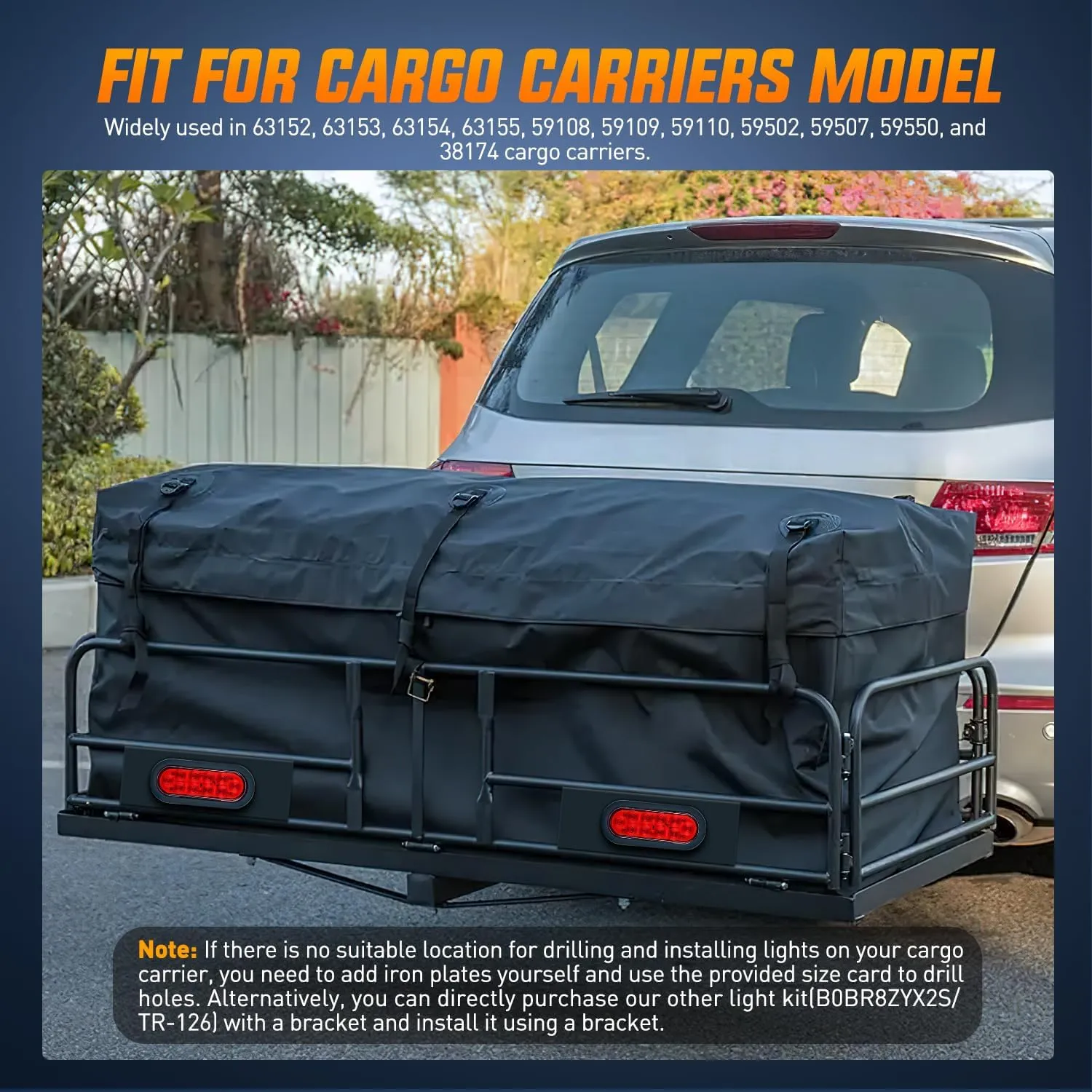

Perfect Matching: This taillight kit is universal fit for 12V DC 4-wire cars system. Function as turn/brake light and tail light for all kinds of trucks, trailers, tractors, etc. Widely used in 63152, 63153, 63154, 63155, 59108, 59109, 59110, 59502, 59507, 59550, and 38174 cargo carriers. 2 Years Warranty Honored by Nilight.
LED Quantity & Type: 10pcs Red 3030 SMD LEDs
Working Voltage: 12V DC/ Waterproof Rate: IP67

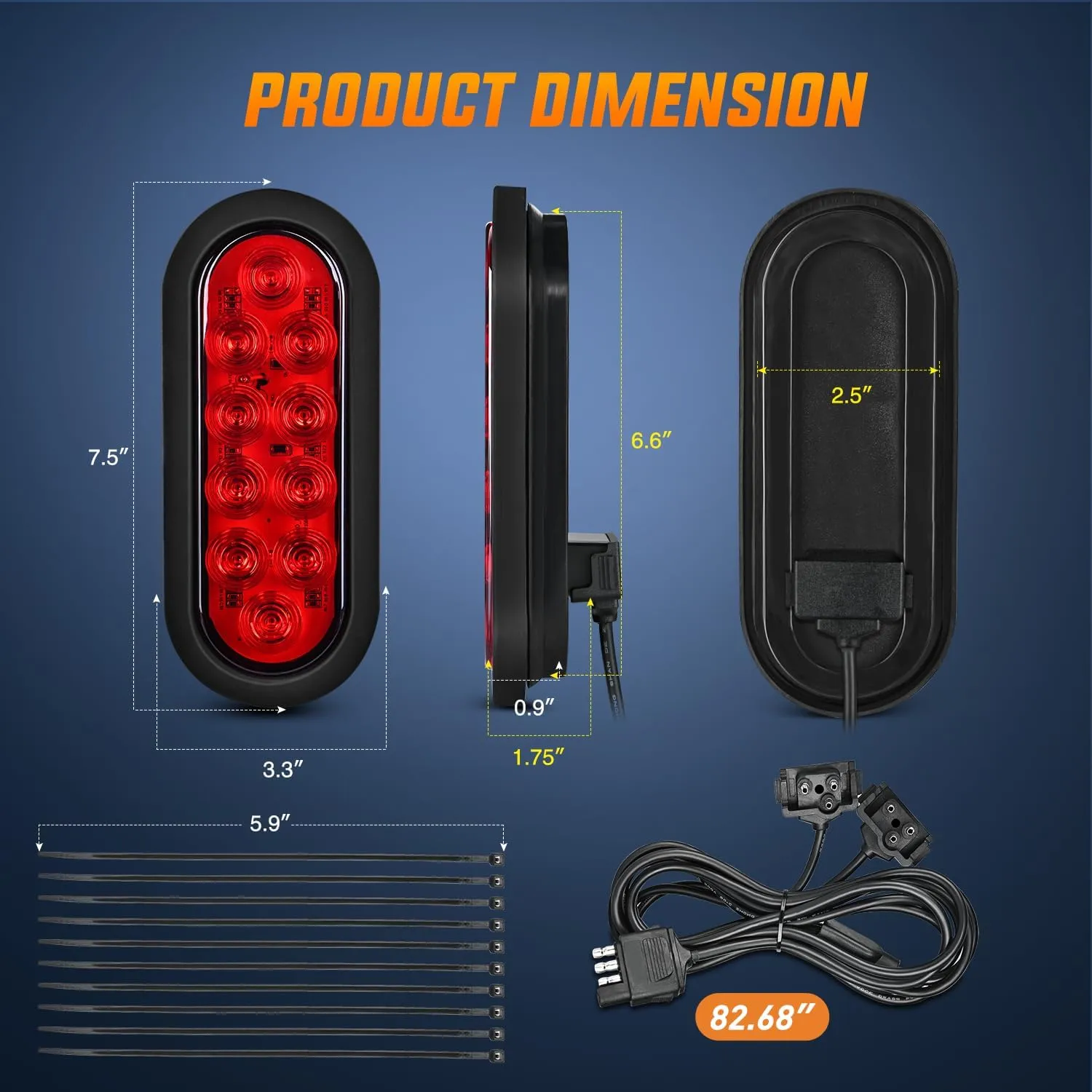

Tail light size with grommet: 7.5” diameter, 1.75” depth
Rubber grommet hole size for surface mount: 6.6” diameter, 1.75” depth
Wire Harness: The total length of the wiring harness is 82.68”. One end is equipped with two 3prong plugs to connect two lights, and the other end is equipped with a 4pin plug to connect to the vehicle
Product Display

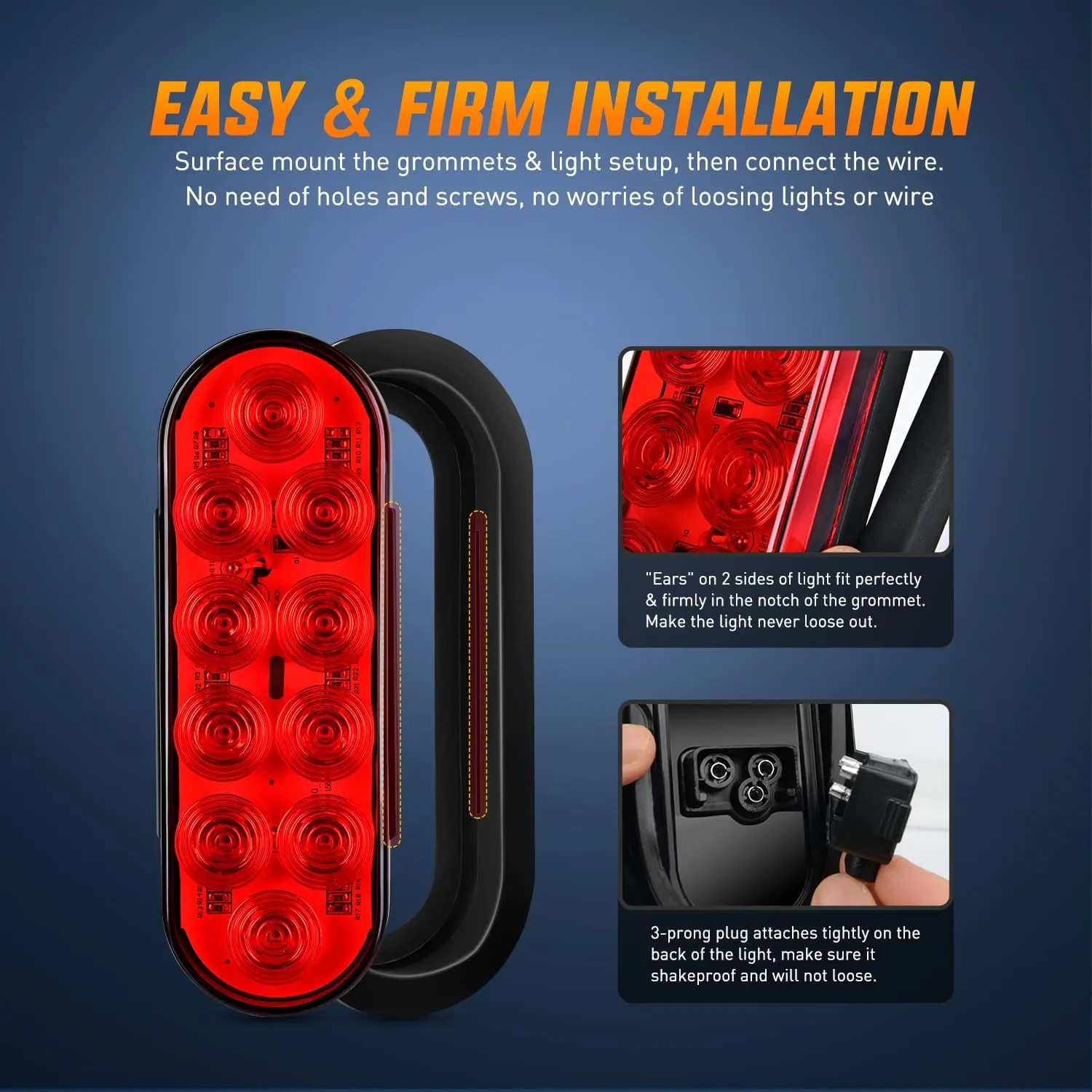

Firm Installation
Has unique “ears” on light's two sides, upgrade notches on the inside of grommet, and a tighter attaching ability of 3-prong plug.

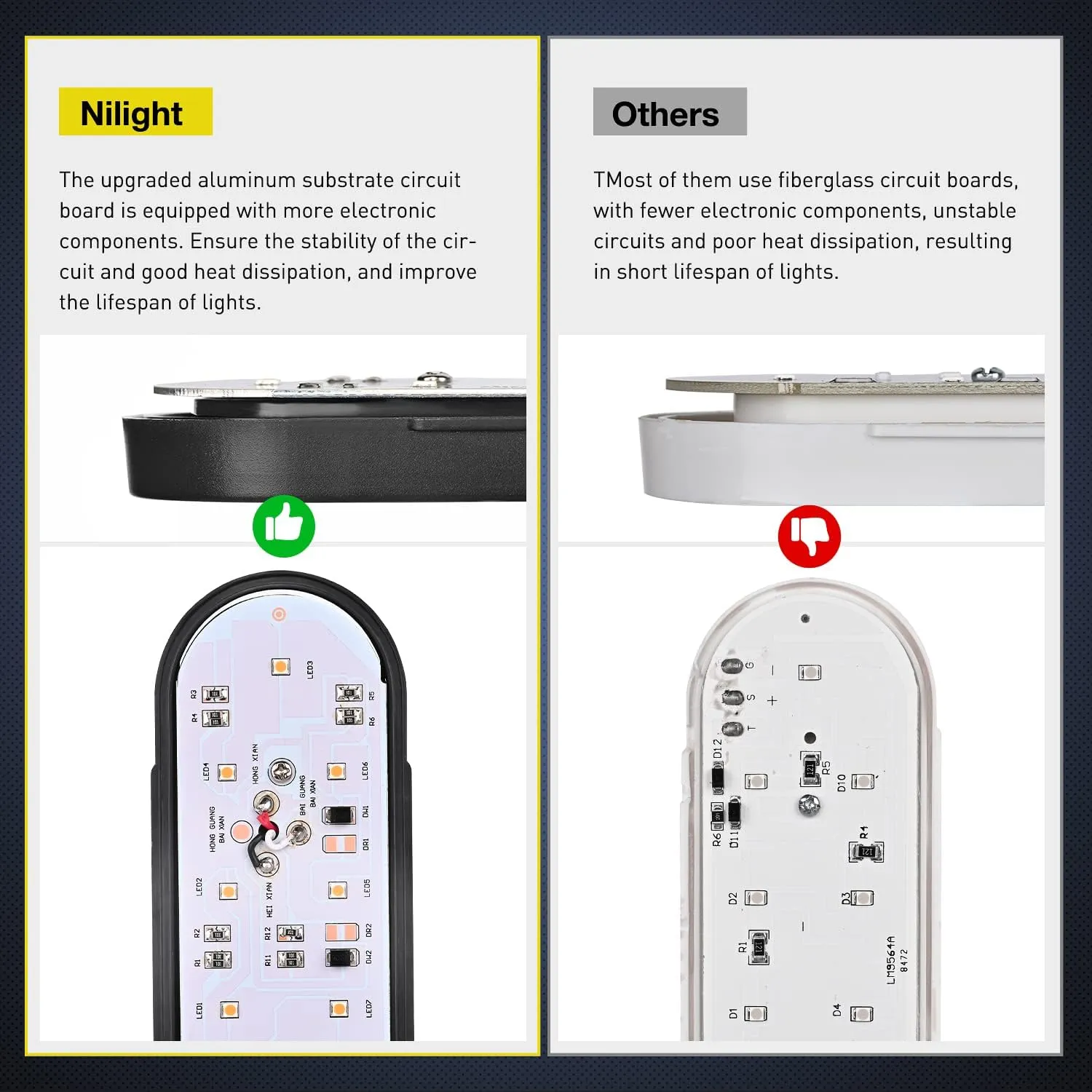

Upgrade Circuit Board
Use aluminum substrate circuit board. More electronic components, better heat dissipation and more stable circuit. Improve the lifespan of lights.

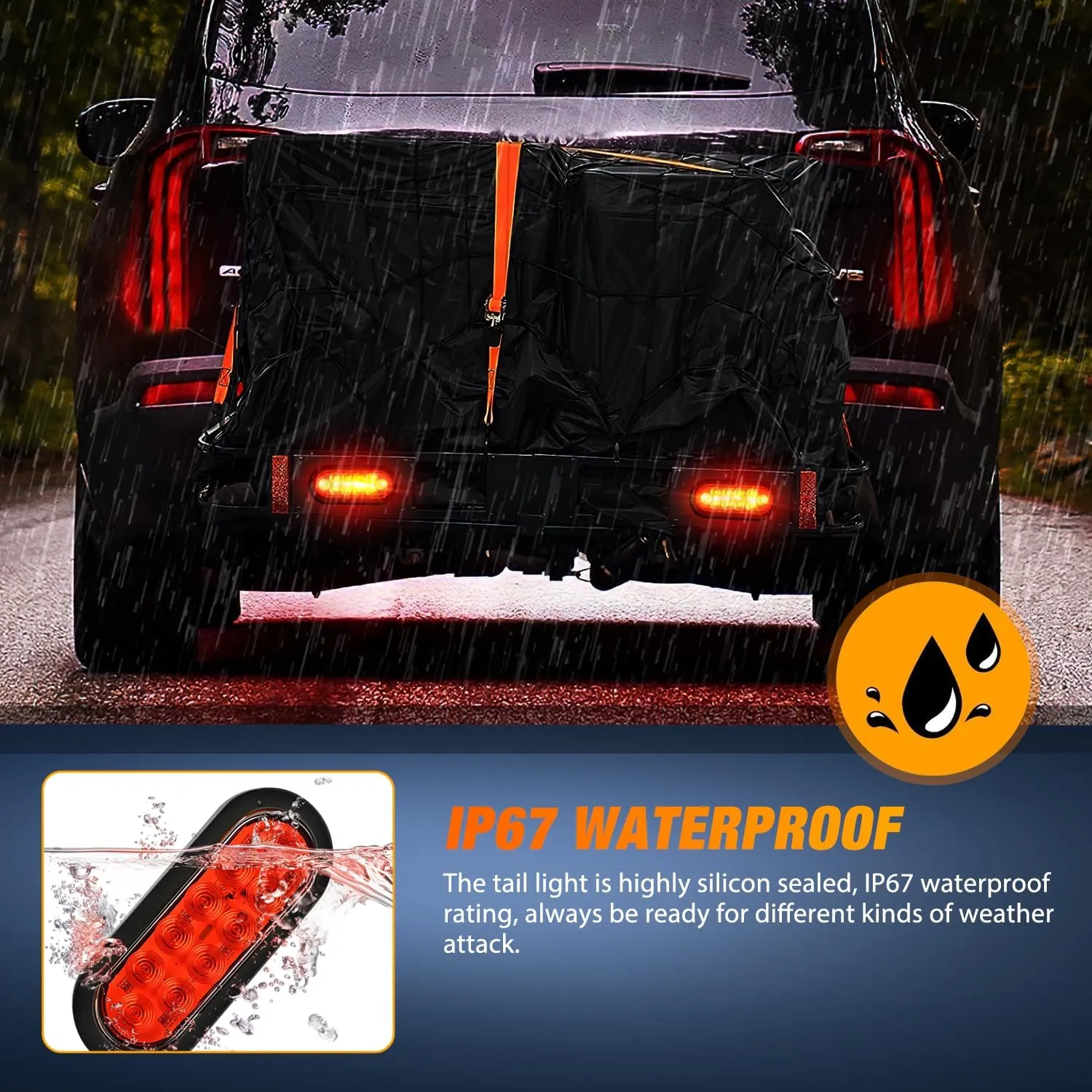

IP67 Waterproof
Highly silicone sealing. IP67 waterproof rate, resistant to water intrusion, durable with any season and weather.
Surface Mount Hole Size
Hole size for surface mount is: 6.6” x2.5” x 1.75”. If there are no reserved holes, you can use the size cardboard we provide to assist in drilling.
